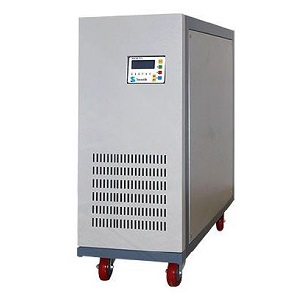

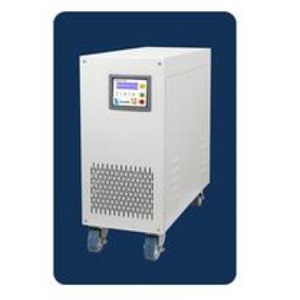

This UPS is very useful for buildings, bungalows, showrooms, industries to run any type of load in case of power outage for long time. The output of this UPS is regulated pure sine wave three phase voltage using high power IGBT modules. This inverter can run elevator motor , air conditioners, machines, lights, fans with different currents to each phase (100 % unbalance)
With LCD display you can read input, output voltage as well as output and battery charging current. Programming is provided to select power transfer delay, battery type, battery charging current, inverter on warning. It has unique software for charging the batteries so there is less maintenance required and the battery life is extended.
SALIENT FEATURE
-
Pure Sine Wave Output
-
High Frequency PWM for Low Noise
-
100% Unbalanced Load can be connected
-
Capable of High Peak Current Loads like induction Motors
-
LCD Display to Read
-
1. Input, Output and Battery Voltage
-
2. Output and Battery Charging Current
SPECIFICATION
Programmable Selection of
-
Inverter on Delay
-
Battery Type: Auto/ Tubular/ SMF
-
Battery Charging Current: 3-10 Amps
-
Fan as needed to avoid dust contamination
-
High Quality Relay and Connectors
-
Short Circuit Protection for IGBT
-
Over Temperature Protection
